804N (3.8 TM CLASS)

Knuckle, telescopic and foldable cranes with a wide range of positions to improve reach capability. Articulated cranes with double rack and pinion rotation system. Suitable for a wide range of applications from fish farming to workboats. Cost reducing solution.

804N (3.8 TM CLASS)

  • Lifting moment: 3.84 tm

  • Lifting moment: 3770 daNm

  • Slewing angle: 380º

  • Weight: 540 kg

  • Working pressure: 235 bar

  • Oil flow: 16 l/min

  • Dim.: 1980x1760x555 mm

STANDARD

OPTIONAL

PDF BROCHURE

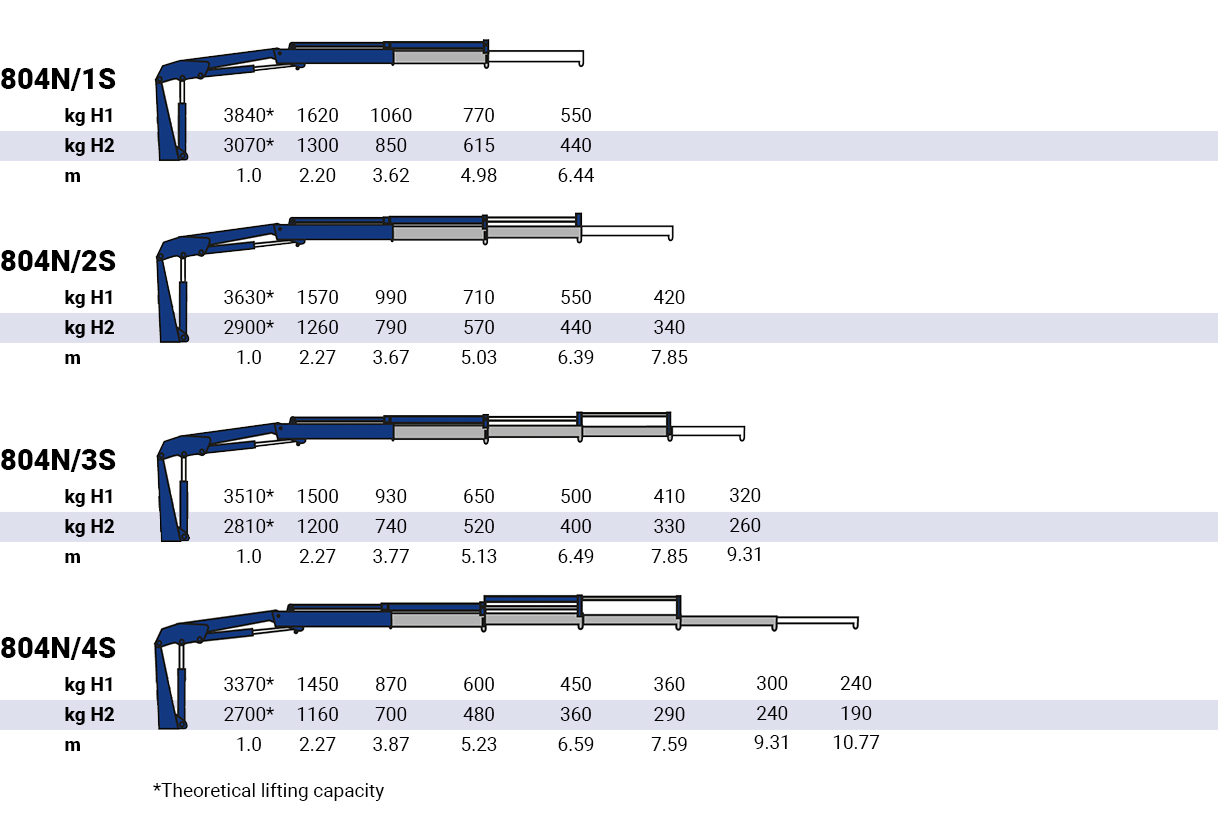

804N (3.8 TM CLASS) VERSIONS
