805T (3.8 TM CLASS)

Medium-size range of telescopic and foldable cranes, mono-boom cranes with double rack and pinion rotation system. The cranes are strong, easy to use and space saving. Ideal for jobs where speed is important and a winch is required, for example in the fishing industry and quay side operations.

805T (3.8 TM CLASS)

    • Lifting moment: 3.85 tm

    • Lifting moment: 3780 daNm

    • Slewing angle: 380º

    • Weight: 520 kg

    • Working pressure: 220 bar

    • Oil flow: 16 l/min

    • Dim.: 1930x1775x480 mm

STANDARD

OPTIONAL

PDF BROCHURE

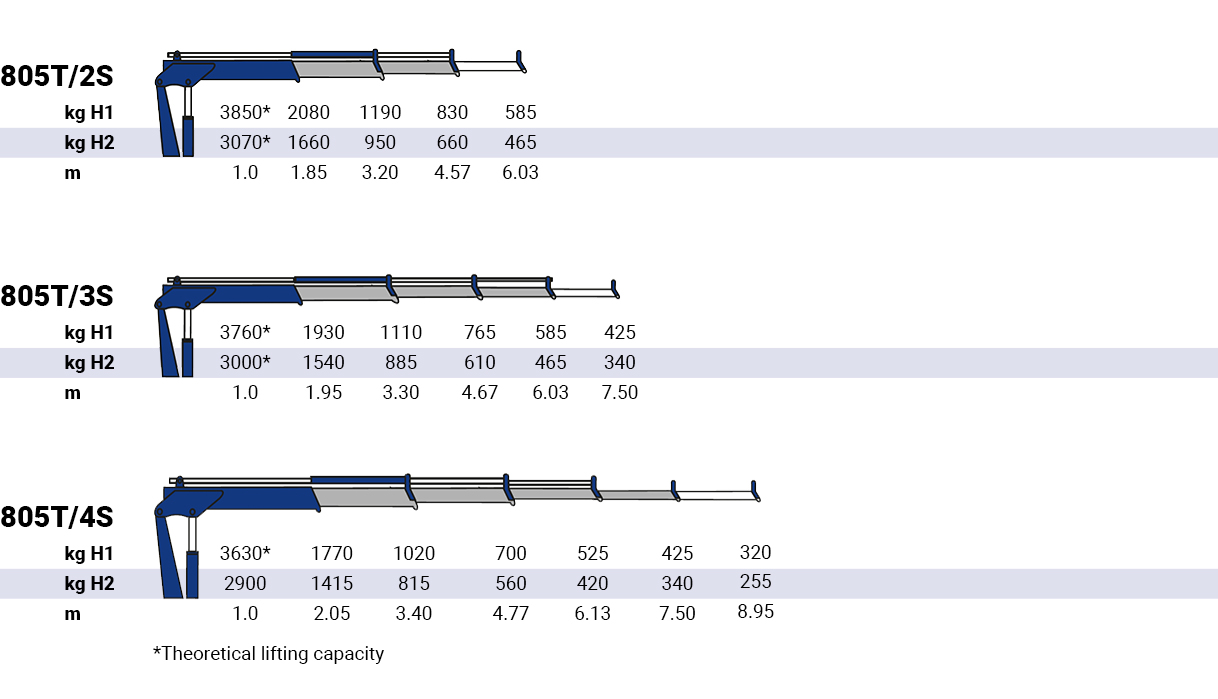

805T (3.8 TM CLASS) VERSIONS
