807N (7.1 TM CLASS)

Knuckle, telescopic and foldable cranes with a wide range of positions to improve reach capability. Articulated cranes with double rack and pinion rotation system. Suitable for a wide range of applications from fish farming to workboats. Cost reducing solution.

807N (7.1 TM CLASS)

  • Lifting moment: 7.17 tm

  • Lifting moment: 7040 daNm

  • Slewing angle: 387º

  • Weight: 735 kg

  • Working pressure: 265 bar

  • Oil flow: 20 l/min

  • Dim.: 2210x1930x595 mm

STANDARD

OPTIONAL

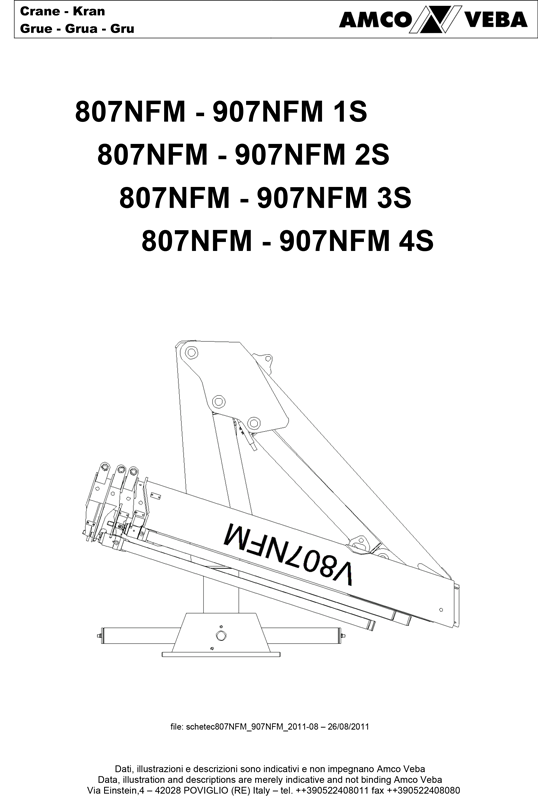

PDF BROCHURE

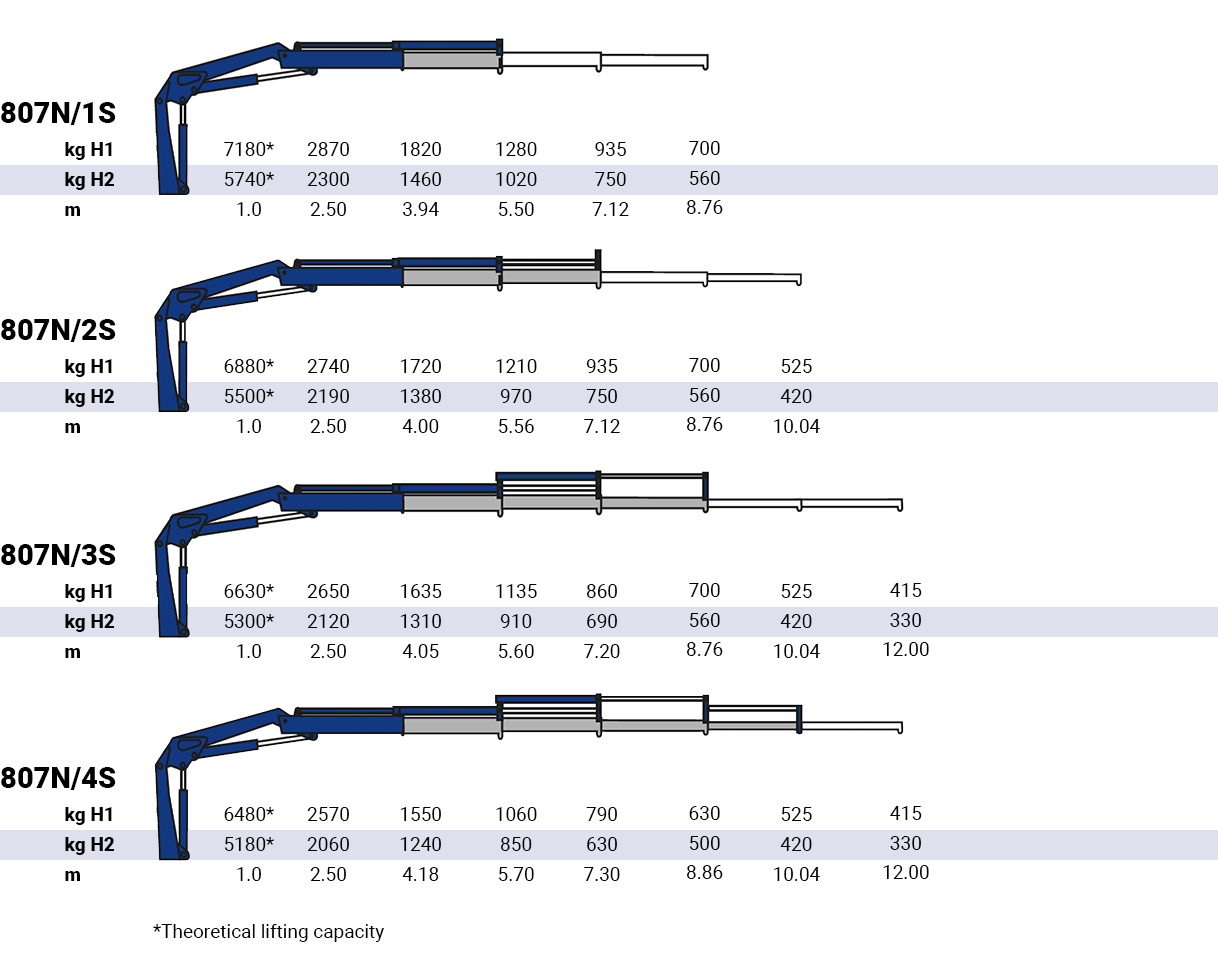

807N (7.1 TM CLASS) VERSIONS
