807NT (6.7 TM CLASS)
Medium-size range of telescopic and foldable cranes, mono-boom cranes with double rack and pinion rotation system. The cranes are strong, easy to use and space saving. Ideal for jobs where speed is important and a winch is required, for example in the fishing industry and quay side operations.
807NT (6.7 TM CLASS)
-
-

Lifting moment: 6.73 tm
-

Lifting moment: 6610daNM
-

Slewing angle: 387º
-

Weight: 680 kg
-

Working pressure: 260 bar
-

Oil flow: 18 l/min
-

Dim.: 2140x1985x520 mm
-
STANDARD
OPTIONAL

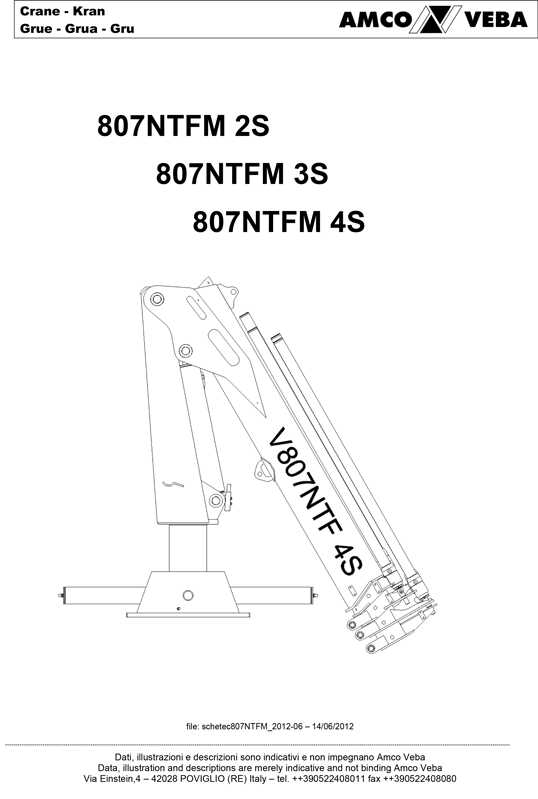

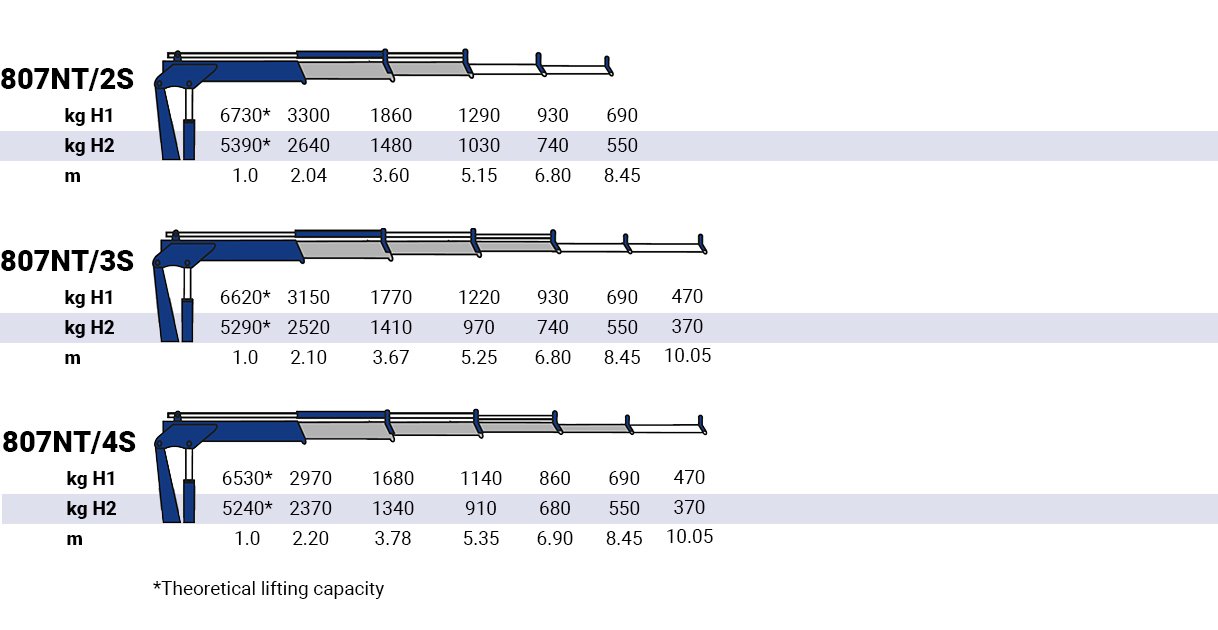

807NT (6.7 TM CLASS) VERSIONS
