808N (7.9 TM CLASS)

Knuckle, telescopic and foldable cranes with a wide range of positions to improve reach capability. Articulated cranes with double rack and pinion rotation system. Suitable for a wide range of applications from fish farming to workboats. Cost reducing solution.
808N (7.9 TM CLASS)
-
Lifting moment: 7.9 tm
-
Lifting moment: 7750 daNm
-
Slewing angle: 387º
-
Working pressure: 765 bar
-
Weight: 285 kg
-
Oil flow: 20 l/min
-
Dim.: 2210x1930x595 mm
STANDARD
OPTIONAL

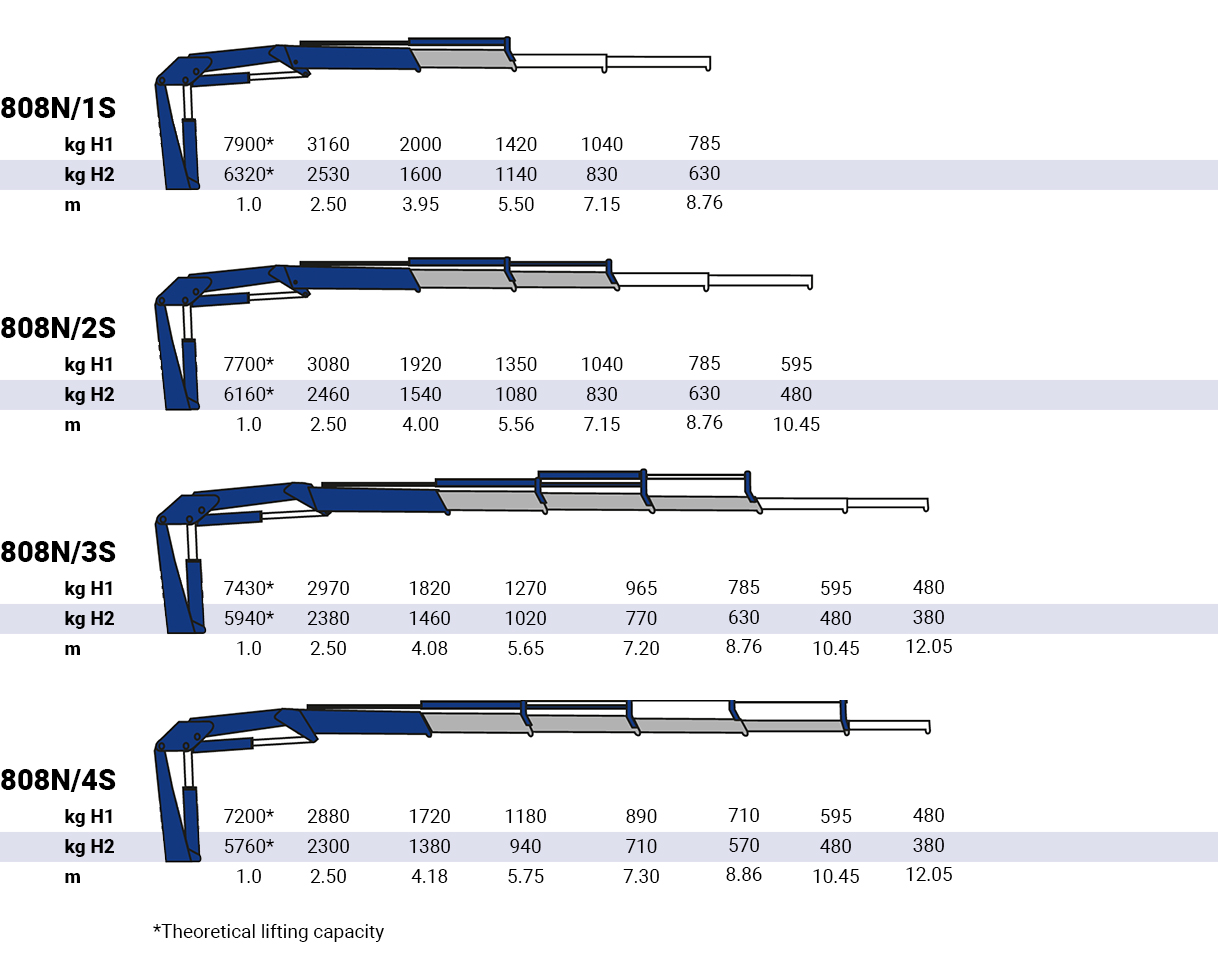

808N (7.9 TM CLASS) VERSIONS
