809T (8.4 TM CLASS)

Medium-size range of telescopic and foldable cranes, mono-boom cranes with double rack and pinion rotation system. The cranes are strong, easy to use and space saving. Ideal for jobs where speed is important and a winch is required, for example in the fishing industry and quay side operations.
809T (8.4 TM CLASS)
-
-
Lifting moment: 8.4 tm
-
Lifting moment: 8250 daNm
-
Slewing angle: 395º
-
Weight: 995 kg
-
Working pressure: 250 bar
-
Oil flow: 20 l/min
-
Dim.: 2010x2235x580 mm
-
STANDARD
OPTIONAL

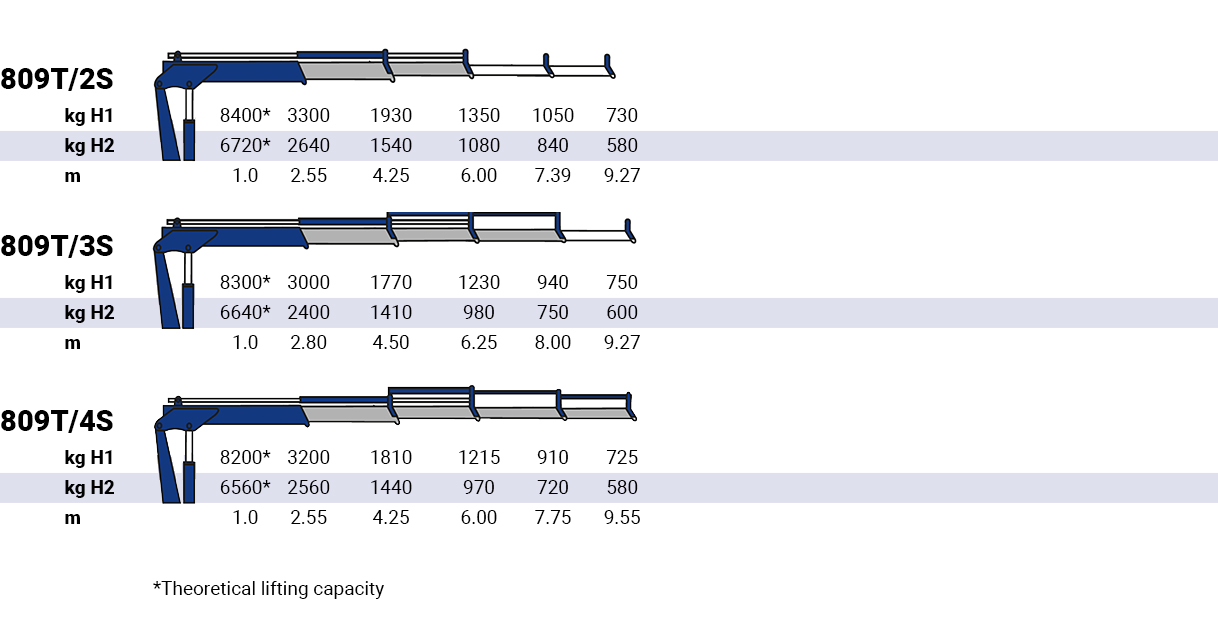

809T (8.4 TM CLASS) VERSIONS
