815 (14 tm class)

Knuckle, telescopic and foldable cranes with a wide range of positions to improve reach capability. Articulated cranes with double rack and pinion rotation system. Suitable for a wide range of applications from fish farming to workboats. Cost reducing solution.
815 (14 tm class)
-
Lifting moment: 14 tm
-
Lifting moment: 18110 daNm
-
Slewing angle: 380º
-
Weight: 1470 kg
-
Working pressure: 290 bar
-
Oil flow: 25 l/min
-
Dim.: 2220x2255x840 mm
STANDARD
OPTIONAL

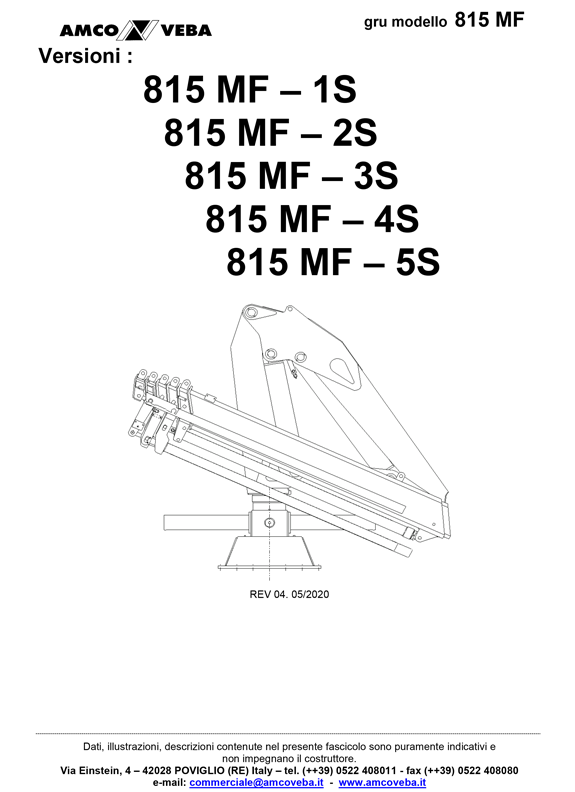

815 (14 tm class) VERSIONS
