817NG (15.8 tm class)

Home / Our cranes / 817NG (15.8 tm class)

Knuckle, telescopic and foldable cranes with a wide range of positions to improve reach capability. Articulated cranes with double rack and pinion rotation system. Suitable for a wide range of applications from fish farming to workboats. Cost reducing solution.

contact us for more information

817NG (15.8 tm class)

    • Lifting moment: 15.8 tm

    • Lifting moment: 15500 daNm

    • Slewing angle: 425º

    • Weight: 1475 kg

    • Working pressure: 280 bar

    • Oil flow: 60 radio 40 no radio l/min

    • Dim.: 2490x2295x825 mm

STANDARD

OPTIONAL

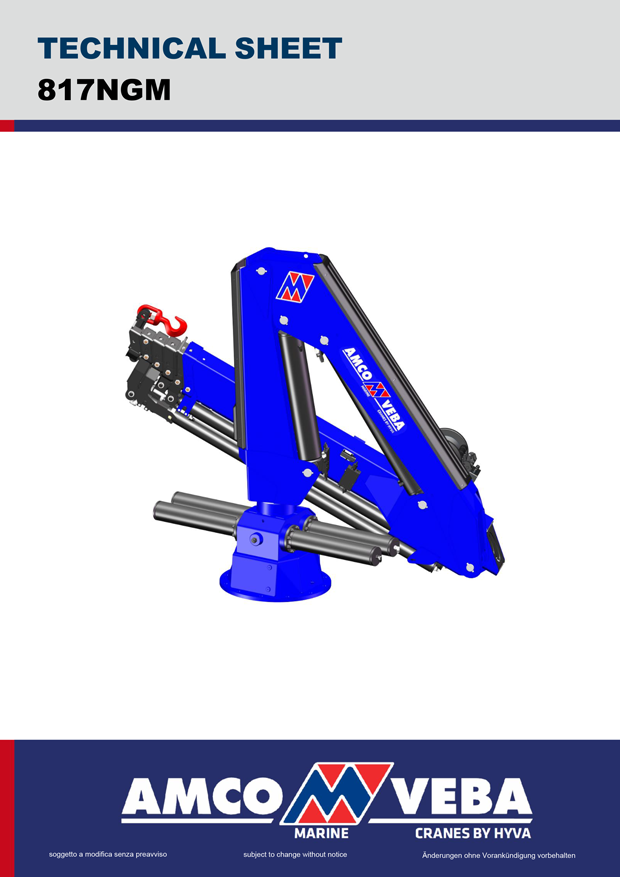

PDF BROCHURE

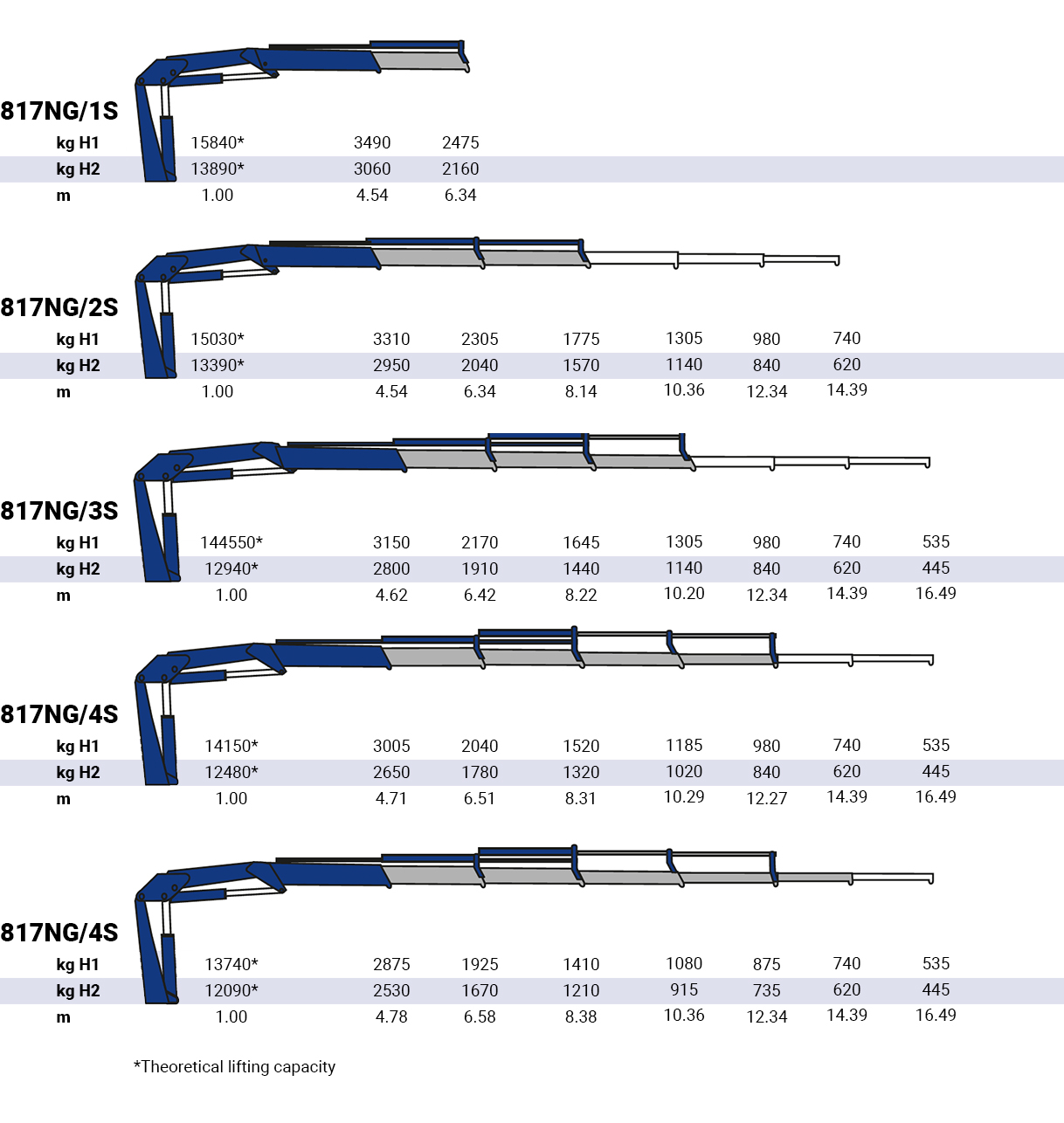

817NG (15.8 tm class) VERSIONS
