820N (19.6 tm class)

Knuckle, telescopic and foldable cranes with a wide range of positions to improve reach capability. Articulated cranes with double rack and pinion rotation system. Suitable for a wide range of applications from fish farming to workboats. Cost reducing solution.
820N (19.6 tm class)
-

Lifting moment: 19.6 tm
-

Lifting moment: 19230 daNm
-

Slewing angle: 387º
-

Weight: 1920 kg
-

Working pressure: 300 bar
-

Oil flow: 40 l/min
-

Dim.: 2257x2237x933 mm
STANDARD
OPTIONAL

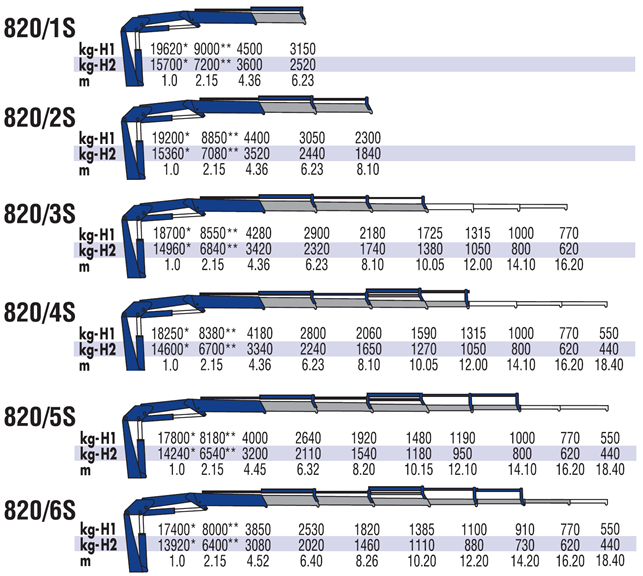

820N (19.6 tm class) VERSIONS
