823N (20.7 tm class)

Home / Our cranes / 823N (20.7 tm class)

Knuckle, telescopic and foldable cranes with a wide range of positions to improve reach capability. Articulated cranes with double rack and pinion rotation system. Suitable for a wide range of applications from fish farming to workboats. Cost reducing solution.

contact us for more information

823N (20.7 tm class)

  • Lifting moment: 20.7 tm

  • Lifting moment: 19920 daNm

  • Slewing angle: 387º

  • Weight: 1920 kg

  • Working pressure: 315 bar

  • Oil flow: 40 l/min

  • Dim.: 2257x2237x933 mm

STANDARD

OPTIONAL

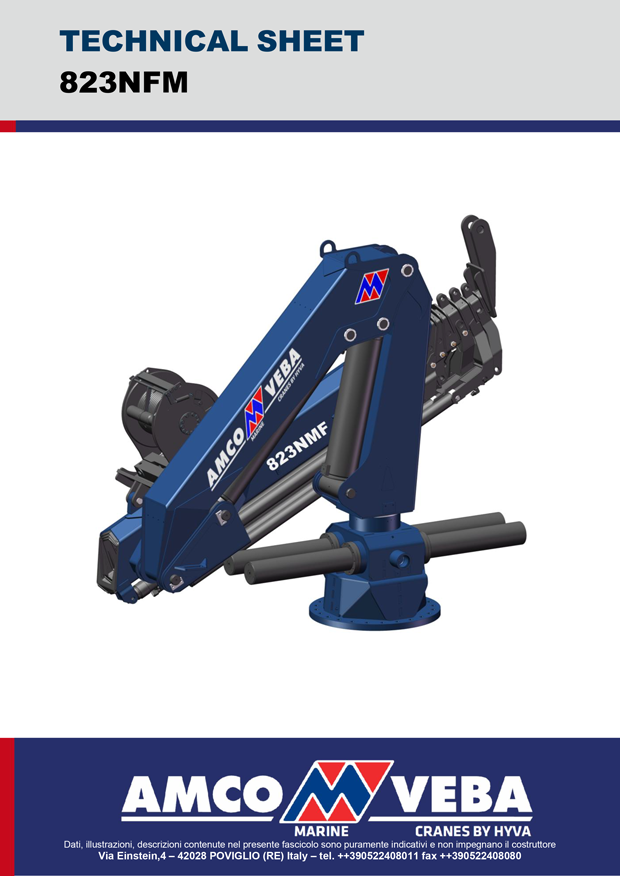

PDF BROCHURE

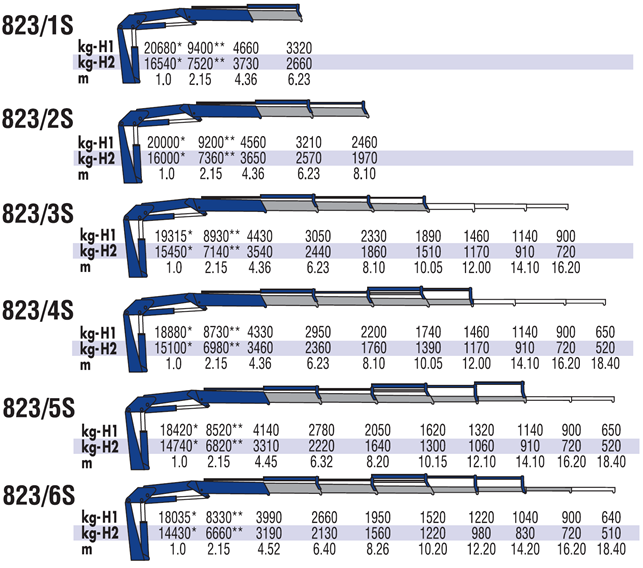

823N (20.7 tm class) VERSIONS
