828 (25.8 tm class)

Knuckle, telescopic and foldable cranes with a wide range of positions to improve reach capability. Articulated cranes with double rack and pinion rotation system. Suitable for a wide range of applications from fish farming to workboats. Cost reducing solution.

828 (25.8 tm class)

  • Lifting moment: 25.8 tm

  • Lifting moment: 25310 daNm

  • Slewing angle: 400º

  • Weight: 2630 kg

  • Working pressure: 305 bar

  • Oil flow: 50 l/min

  • Dim.: 3115x2360x1130 mm

STANDARD

OPTIONAL

PDF BROCHURE

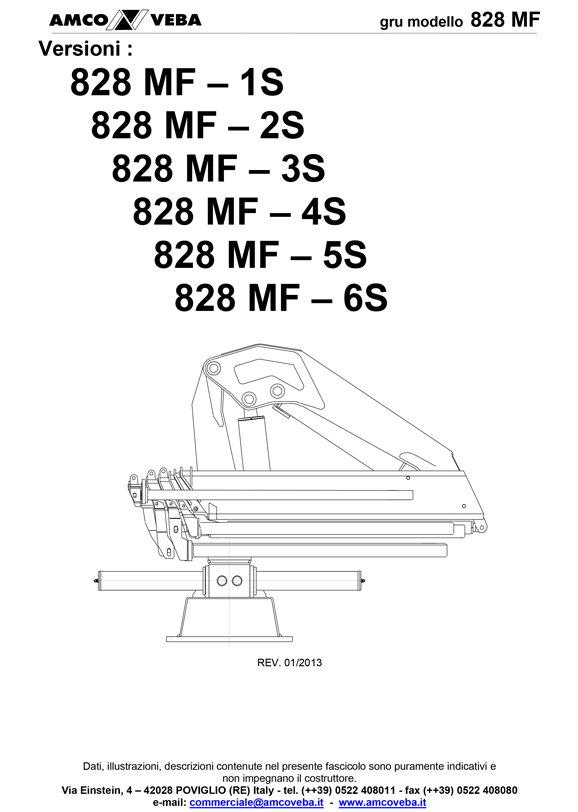

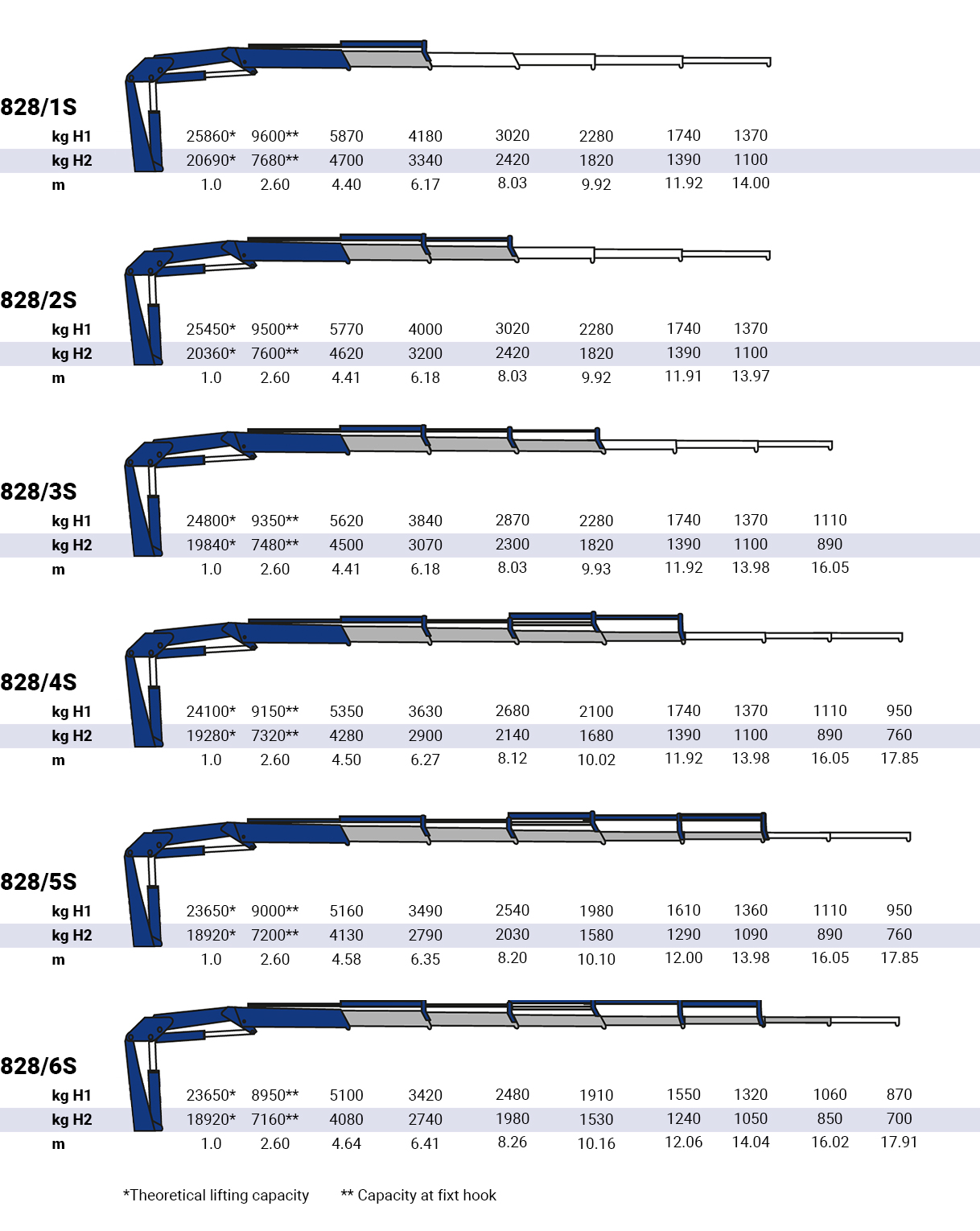

828 (25.8 tm class) VERSIONS
